تعمیر کمپرسور هنبل اسکرو 340 تن

گروه مهندسی مهراسپند ارائه دهنده تخصصی ترین تعمیر کمپرسور هنبل اسکرو 340 تن، تعمیرات کمپرسورهای تبرید اسکرو، پیستونی، اسکرال می باشد و یکی از مجهزترین مجموعه های تعمیراتی کمپرسور در خاورمیانه است. مشاوره تعمیر کمپرسور در کارگاه این شرکت رایگان می باشد. برای مشاوره و تعمیر کمپرسور هنبل اسکرو 340 تن خود با ما تماس بگیرید.

  • Fewer vibrations result in less noise
  • Fewer moving parts than in reciprocating compressors
  • Easy maintenance
  • High operating COP
  • Low operating noise

Introduction

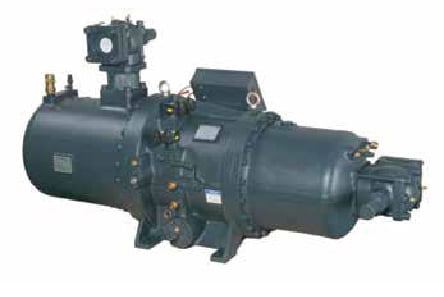

With its small footprint, the Hanbell Screw Compressor provides an efficient means of compressing refrigerant in larger applications.

The RC2 model has a wide operating envelope, designed to cover low, medium and high temperature applications using R134a and other refrigerants. With very few moving parts, the Hanbell Screw Compressor offers excellent reliability and is a quieter than other alternatives.

Operating at 2800 rpm, the Hanbell Screw is more cost effective than larger reciprocating semi-hermetic compressors. It offers higher operating efficiencies, compared to reciprocating or scroll compressor technologies.

A highly efficient motor allows optimum output, no matter what running capacity the compressor is set at. This results in a high displacement of refrigerant, energy efficiency and lower running costs. Hanbell uses long life bearings for higher levels of reliability.

Dual Capacity Control

  • Flange-on Solenoid coil easy for installation
  • 3-step / 4-step or continuous (33%~100% / 25%~100%)
  • Interchangeable by varying conrol logic without modification of solenoid valves

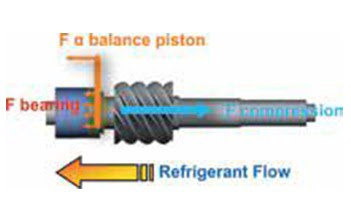

Durable Bearing Structure

  • 11 high-quality bearings (radial & axial resistance)
  • Additional two bearings for backward rotation
  • Balance Piston against axial thrust Heavy-duty Design
  • Resulted in longer bearing life compared to traditional 9-bearing design

High-efficiency Motor

  • Available for part winding start or star delta start
  • Custom-made for specified voltage and frequency of power
  • Two motor options A & B according to operation condition & refrigerant type
  • Optimal design of slot inside motor casing
  • Patented motor-cooling design in ducts of refrigerant flow encompassing stator provides best dissipation of heat
  • Sliding-fit stator easier for installation & removal
